Kondensatoren en hoogspanningscomponenten, hoogspanningscomponenten deurknoppencondensatoren
| Plaats van herkomst | XIAN, CHINA |
|---|---|
| Merknaam | XIWUER |
| Certificering | ISO9001,ISO14001,ISO45001,CCC |
| Model Number | CT8-1 |
| Document | High Voltage Ceramic Capaci...25.pdf |
| Minimum Order Quantity | 1pcs |
| Packaging Details | Carton |
| Levertijd | 5-7 dagen |
| Betalingscondities | L/C,T/T |
| Supply Ability | 3,000,000 pcs a year |
Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Operating temperature range | －40℃ ～ ＋85℃ | Diëlektrisch verlies | ≤0.0040 |
|---|---|---|---|
| Withstand voltage | 1.5Ur·1min | Insulation resistance | ≥1.0X100000MΩ |
| Markeren | Hoogspanningscapacitoren voor deurknoppen,Hoogspanningscomponenten condensatoren,Hoogspanningscomponenten Doorknobcondensatoren |
||
Productomschrijving
Capacitors and High Voltage Components, High Voltage Components
Doorknob Capacitors
Professional manufacturer ~ SPD, HV Ceramic Capacitor, TMOV, Varistor and Thermistor.
The document has detailed parameters you can download. If it does not meet your requirements, please rest assured that we can customize the product according to your requirements.
Description

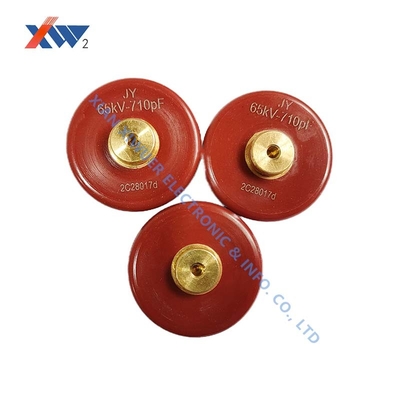

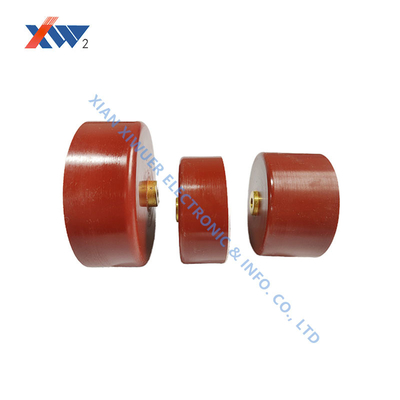

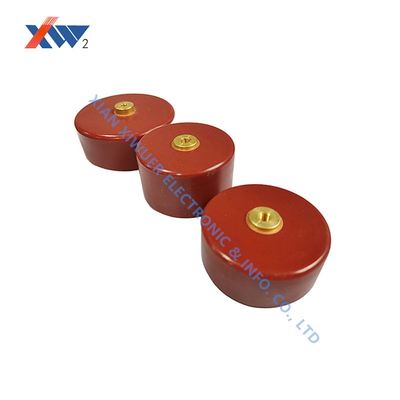

These high voltage ceramic capacitors are made from a ceramic dielectric and are then encapsulated in epoxy resin. The terminal threads on the capacitors are either M4 or M5, depending on model, with a thread depth of 4mm.
As a high power capacitor they are designed for applications which require a low dissipation factor and a small voltage coefficient, they have excellent temperature characteristics a low partial discharge and a large capacitance.
The operating temperature range of the capacitors is between -40 to +85°C
Some common applications are:
Gas laser
DC HV power supplies
Lightning arresters
Voltage distribution systems
Electron Microscopes
Synchroscopes
Electrostatic Coating Machines
|
Part No. |
Capacitance (pF) |
Rated Voktage(KVDC) |
Charge and discharge voltage (KV) |
Dimension(mm) |
Operating temperature range |
|||||
|
Working voltage |
D |
H |
L |
M |
d |
|||||
|
CT8-1 |
390 |
15 |
10 |
20 |
19 |
28 |
4 |
8 |
－40℃ ～ ＋85℃ |
|
|
500 |
31 |
20 |
35 |
5 |
10 |
|||||
|
1000 |
31 |
18 |
33 |
5 |
10 |
|||||
|
2500 |
40 |
13 |
22 |
5 |
12 |
|||||
|
5600 |
60 |
21 |
27 |
4 |
12 |
|||||
|
68 |
20 |
15 |
20 |
25 |
29 |
4 |
8 |
|||
|
1000 |
32 |
13 |
22 |
4 |
10 |
|||||
|
1800 |
45 |
22 |
32 |
4 |
12 |
|||||
|
3300 |
60 |
19 |
27 |
4 |
12 |
|||||
|
4000 |
50 |
15 |
24 |
/ |
/ |
|||||
|
10000 |
80 |
23 |
32 |
/ |
/ |
|||||
|
50 |
30 |
|
20 |
20 |
12 |
24 |
4 |
8 |
||
|
330 |
20 |
27 |
36 |
4 |
8 |
|||||
|
400 |
28 |
28 |
37 |
4 |
8 |
|||||
|
500 |
26 |
17 |
25 |
4 |
8 |
|||||
|
1000 |
45 |
23 |
32 |
/ |
/ |
|||||
|
31 |
17 |
21 |
/ |
/ |
||||||
|
2000 |
50 |
23 |
32 |
4 |
12 |
|||||
|
2700 |
60 |
20 |
29 |
/ |
/ |
|||||
|
4000 |
60 |
19 |
28 |
5 |
12 |
|||||
|
5000 |
74 |
25 |
30 |
5 |
12 |
|||||
|
3800 |
35 |
|
20 |
74 |
23 |
32 |
/ |
/ |
||
|
140 |
40 |
|
30 |
20 |
32 |
41 |
4 |
8 |
||
|
200 |
20 |
33 |
42 |
/ |
/ |
|||||
|
300 |
26 |
33 |
42 |
4 |
8 |
|||||
|
820 |
38 |
27 |
31 |
/ |
/ |
|||||
|
500 |
28 |
33 |
43 |
4 |
8 |
|||||
|
1000 |
40 |
27 |
36 |
4 |
12 |
|||||
|
3300 |
65 |
27 |
36 |
/ |
/ |
|||||
|
4400 |
80 |
27 |
36 |
5 |
12 |
|||||
|
5600 |
80 |
23 |
28 |
5 |
12 |
|||||
|
7500 |
80 |
24 |
28 |
6 |
12 |
|||||
|
570 |
45 |
|
30 |
36 |
24 |
32 |
4 |
12 |
||
|
710 |
40 |
31 |
39 |
4 |
10 |
|||||
|
1000 |
50 |
32 |
36 |
4 |
12 |
|||||
|
330 |
50 |
35 |
26 |
31 |
39 |
4 |
8 |
－40℃ ～ ＋85℃
|
||
|
600 |
45 |
34 |
43 |
4 |
12 |
|||||
|
1000 |
50 |
27 |
36 |
/ |
/ |
|||||
|
2000 |
60 |
32 |
41 |
5 |
12 |
|||||
|
3000 |
74 |
29 |
38 |
5 |
12 |
|||||
|
4000 |
74 |
34 |
38 |
5 |
12 |
|||||
|
5000 |
80 |
34 |
38 |
5 |
12 |
|||||
|
500 |
60 |
|
40 |
38 |
40 |
44 |
4 |
12 |
||
|
|
|
|
|
|
|
|||||
|
|
1000 |
|
|
|
50 |
39 |
47 |
5 |
12 |
|
