24kV 50pF High Voltage Ceramic Capacitor Core Rod

  • 24kV 50pF High Voltage Ceramic Capacitor Core Rod
  • 24kV 50pF High Voltage Ceramic Capacitor Core Rod
  • 24kV 50pF High Voltage Ceramic Capacitor Core Rod
Place of Origin XIAN, CHINA
Merknaam XIWUER
Certificering ISO9001,ISO14001,ISO45001
Model Number 24kv 50pF
Minimum Order Quantity 1
Prijs Onderhandelbaar
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C,T/T
Supply Ability 8,000,000 a year

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Rated Voltage 24kv 50pF Nominal Capacitance(pF) 50pF
Nominal Capacitance RangeTest Frequency1kHz+20%TestVoltage 1V+0.2V:45~50 Withstand Voltage(In the insulating oil) 70kVAC/5min
Partial Discharge 26.4kVAC≤10pC Lightning Impulse kV1.2/5μs 125
Markeren

24kV high voltage ceramic capacitor

,

50pF ceramic capacitor core rod

,

high voltage capacitor with warranty
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Laat een bericht achter
Productomschrijving

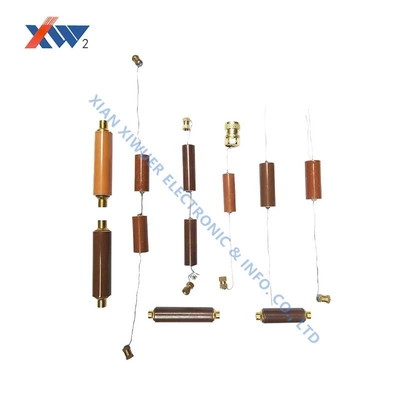

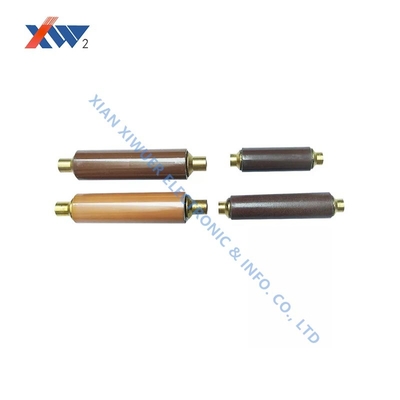

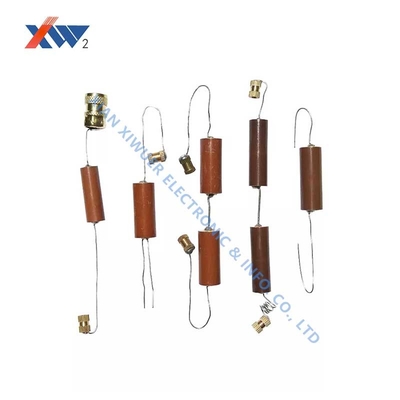

High Voltage Ceramic Capacitor Core Rod 24kV 50pF
Technical Specifications
Attribute Value
Rated Voltage 24kV 50pF
Nominal Capacitance (pF) 50pF
Nominal Capacitance Range
Test Frequency: 1kHz+20%
Test Voltage		 1V+0.2V:45~50
Withstand Voltage (In the insulating oil) 70kVAC/5min
Partial Discharge 26.4kVAC≤10pC
Lightning Impulse kV1.2/5μs 125
Key Features
  • Rated Voltage: 24kVAC
  • Nominal Capacitance: 50pF
  • Nominal Capacitance Range: 45~50 at 1kHz+20% test frequency
  • Withstand Voltage: 70kVAC/5min in insulating oil
  • Partial Discharge: ≤10pC at 26.4kVAC
  • Lightning Impulse: 125kV (1.2/5μs)
Application Areas

Vacuum Interrupter (Circuit Breaker Core): Metalized ceramic core rods (alumina-based) are used to manufacture vacuum interrupter cavities, providing airtight sealing and electrical insulation for high-voltage current interruption. Applications include mining circuit breakers and generator protection systems.

Live Display Device: Used in 10kV-40.5kV power systems to provide real-time indication of high-voltage conductor status, circuit breakers (SF6 and vacuum types), lightning arresters, and instrument transformers, ensuring operator safety.

Typical Parameters: Capacitance ranges from 10pF-230pF (e.g., 90pF at 24kV), with withstand voltage of 68kV (power frequency) and 125kV (lightning impulse).

Usage Instructions
  • Partial discharge not to exceed 5pC at 1.1 times rated voltage unless otherwise specified
  • Complies with standard DL/T538-2006 (High Voltage Presence Indication Device)
  • Custom dimensions available upon request
  • Protect product from damage, moisture, and contamination
  • Complies with standard JBT10305-2001 (Technical conditions for post insulator of organic material in 3.6kV-40.5kV high voltage equipment)
For installations below 100 meters or in high altitude areas, please specify in order notes.
