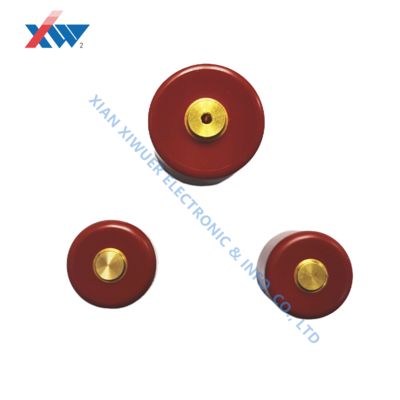

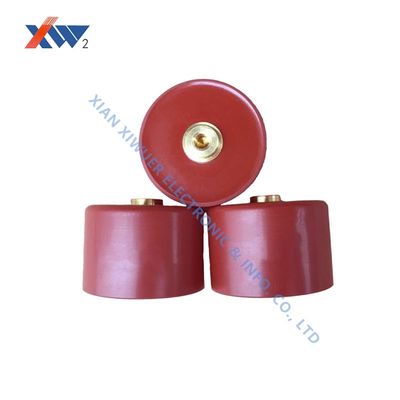

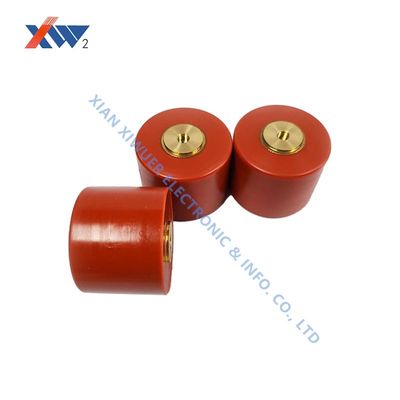

High Voltage Doorknob Capacitor HV Doorknob Capacitor with 20kV-2000pF 20kV-10000pF 20kV-18000pF for Industrial X-ray Imaging

  • High Voltage Doorknob Capacitor HV Doorknob Capacitor with 20kV-2000pF 20kV-10000pF 20kV-18000pF for Industrial X-ray Imaging
  • High Voltage Doorknob Capacitor HV Doorknob Capacitor with 20kV-2000pF 20kV-10000pF 20kV-18000pF for Industrial X-ray Imaging
  • High Voltage Doorknob Capacitor HV Doorknob Capacitor with 20kV-2000pF 20kV-10000pF 20kV-18000pF for Industrial X-ray Imaging
Plaats van herkomst XIAN, SHANNXI CHINA
Merknaam XIWUER
Certificering ISO9001,ISO14001,OHSAS18001
Modelnummer CT8-1-20KV-10000PF
Min. bestelaantal 1 stuk
Prijs Onderhandelbaar
Verpakking Details Karton
Levertijd 10-15 dagen
Betalingscondities L/c, t/t
Levering vermogen 4.000.000 PCs een jaar

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Markeren

20kV-2000pF High Voltage Doorknob Capacitor

,

20kV-10000pF HV Doorknob Capacitor

,

20kV-18000pF Industrial X-ray Capacitor
Laat een bericht achter
Productomschrijving
High Voltage Doorknob Capacitors for Industrial X-ray Real-Time Imaging Systems
Technical Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
Sharp Observation: Noise-Free High-Voltage Power for X-ray Imaging
In high-end industrial X-ray real-time imaging systems, image clarity and signal-to-noise ratio directly determine defect detection capabilities. The system requires continuous, stable X-ray emission. Any fluctuations or noise in the high-voltage power supply will produce artifacts or noise in the image, obscuring critical information.
Power Supply Noise Impact on Image Quality

Ripple noise in the high-voltage power supply directly modulates X-ray intensity, resulting in:

  • Uneven grayscale and fixed-pattern background noise
  • Reduced visibility of small, low-contrast defects (microcracks, loose surfaces)
  • Flickering streaks during dynamic imaging that affect judgment
Solution: Ultra-low ESR Doorknob Capacitors

Our high-voltage doorknob capacitors feature:

  • Ultra-low equivalent series resistance (ESR) and inductance (ESL)
  • Maintain extremely low impedance across high-frequency ranges (tens of kHz to MHz)
  • Create a "current dead zone" for effective high-frequency ripple current bypass
  • Deliver near-perfect DC high-voltage output
Customer Benefits
Improved Image Quality: Higher signal-to-noise ratios reveal micron-level defects
Enhanced Inspection Efficiency: Reduces repeated exposures and manual misjudgments
Increased System Reliability: Excellent heat dissipation ensures long life in continuous operation
Production Line Suitability: Ideal for in-line inspection equipment with stable performance
