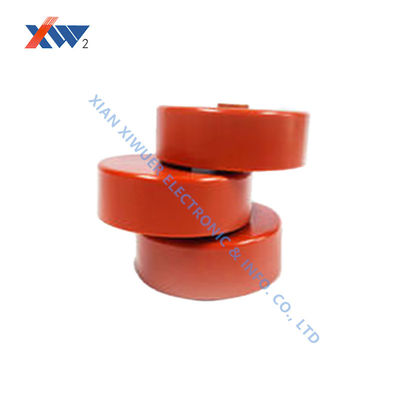

High-voltage doorknob capacitors play a central role in advanced materials processing equipment // Plasma cleaning, magnetron sputtering, laser surface modification...

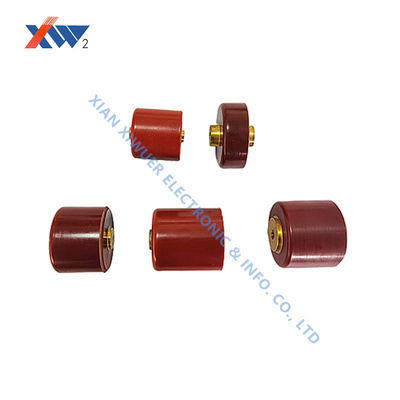

  • High-voltage doorknob capacitors play a central role in advanced materials processing equipment // Plasma cleaning, magnetron sputtering, laser surface modification...

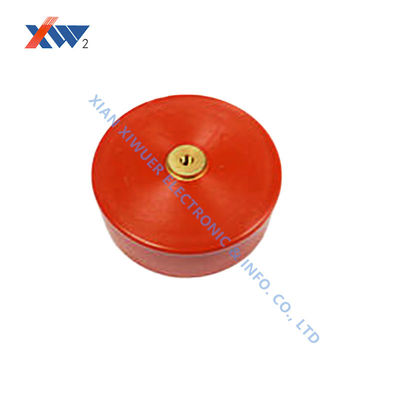

  • High-voltage doorknob capacitors play a central role in advanced materials processing equipment // Plasma cleaning, magnetron sputtering, laser surface modification...
  • High-voltage doorknob capacitors play a central role in advanced materials processing equipment // Plasma cleaning, magnetron sputtering, laser surface modification...
Plaats van herkomst XIAN, SHANNXI CHINA
Merknaam XIWUER
Certificering ISO9001,ISO14001,OHSAS18001
Modelnummer CT8-2-30KV-1000PF
Min. bestelaantal 1 stuk
Prijs Onderhandelbaar
Verpakking Details Karton
Levertijd 10-15 dagen
Betalingscondities L/c, t/t
Levering vermogen 4.000.000 PCs een jaar

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Markeren

30kV-1000pF High Voltage Doorknob Capacitor

,

30kV-2700pF HV Ceramic Capacitor

,

30kV-12000pF Doorknob Capacitor
Laat een bericht achter
Productomschrijving
High-Voltage Doorknob Capacitors for Advanced Materials Processing

Essential components for plasma cleaning, magnetron sputtering, laser surface modification, and other advanced materials processing applications.

Technical Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
Precise Energy Control for Advanced Materials Processing

High-voltage doorknob capacitors serve as critical components in energy regulation and stabilization for:

  • Plasma cleaning systems
  • Magnetron sputtering equipment
  • Laser surface modification tools
Key Power Supply Requirements for Material Processing
  • Extremely stable and low noise: Ensures consistent plasma density, laser energy, and sputtering rates
  • Efficient pulse power capability: Supports high-frequency, high-energy instantaneous pulses
  • Strong load shock resistance: Maintains stability during plasma ignition and fluctuations
Core Functions in High-Voltage Power Systems
  • DC link support and filtering: Smooths high-frequency ripple for clean, stable DC high voltage
  • Pulse energy reservoirs: Stores and releases energy for high-peak power pulses
Our Capacitor Advantages
  • High energy density with rapid charge/discharge capabilities
  • Extremely low equivalent series inductance (ESL) for instantaneous energy delivery
  • Rugged epoxy resin vacuum casting with metal housing for industrial durability
  • Excellent resistance to moisture, dust, and chemical corrosion

Choosing our high-voltage doorknob capacitors ensures precision energy control for your most demanding material processing applications.
