Productomschrijving

Long-Term Reliability Design of High-Voltage Doorknob Capacitors in Coupling Devices

High-voltage coupling devices are often deployed in harsh, maintenance-prone environments such as substations and transmission lines. Their core component, the coupling capacitor, must withstand continuous electrical stress, temperature cycling, and potential transient overvoltage surges. Any premature failure could lead to communication interruption or monitoring system failure, with serious consequences. The long-term reliability and robust design of high-voltage door handle capacitors are the cornerstones of ensuring trouble-free operation of the entire system.

Harsh Operating Conditions for Capacitors in Coupling Devices

Continuous high-voltage stress: Capacitors operate under the electric field of rated power frequency voltage and its harmonics for extended periods, continuously testing the dielectric strength of the dielectric.

High-frequency current and thermal stress: Carrier signal current flows through the capacitor, causing dielectric loss and resulting in temperature rise, especially when the signal power is high.

Environmental stress: Outdoor devices must withstand environmental factors such as daytime temperature fluctuations, humidity, ultraviolet light, and even pollution.


Drawing:

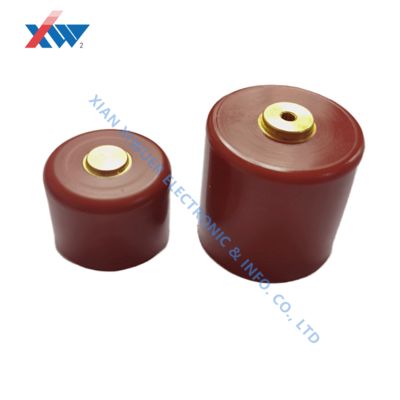

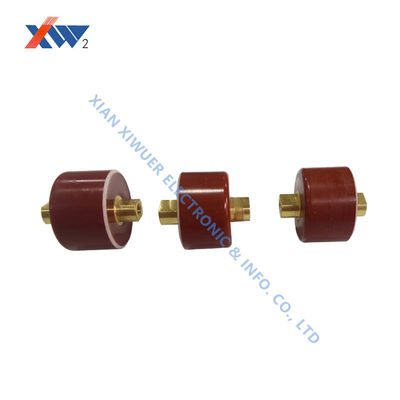

Guarding The High-Voltage Boundary: Long-Term Reliability Design Of High-Voltage Doorknob Capacitors In Coupling Devices 0

Parameters:

No. Specification Dissipation Withstanding voltage Insulation resistance Dimension(mm)
1 20kV-2000pF








≦0.0040








1.5Ur● 1min








≧1.0×105MΩ

 D H L D M
2 20kV-10000pF 45 19 23 12 5
3 20kV-18000pF 65 15 19 12 5
4 30kV-1000pF 80 17 25 12 5
5 30kV-2700pF 45 24 32 12 4
6 30kV-12000pF 60 20 28 12 4
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 Insulator type 100kV-1500pF 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5



Markeringen:

Openluchthv ceramische condensator

De kleine Condensator van de Voltageindicator

Gelijkstroom-Hoogspannings Ceramische Condensator
